Have you measured the depth of the pilot bearing in the flywheel, and does that match the wear marks in the end shaft ?
Is the pilot bearing seated to end meeting the end of the crank ?
Is it the correct pilot bearing and thickness for flywheel ?

Can only see what your photo quality was but do not see marks as end shaft sliding back and forth


Oneball

Oneball

CCCUK Member
teamzr1 said:
Have you measured the depth of the pilot bearing in the flywheel, and does that match the wear marks in the end shaft ?
Is the pilot bearing seated to end meeting the end of the crank ?
Is it the correct pilot bearing and thickness for flywheel ?

Can only see what your photo quality was but do not see marks as end shaft sliding back and forth

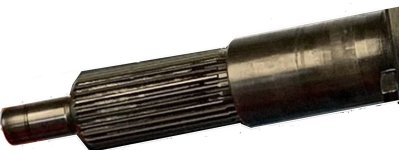

View attachment 17987
Click to expand...

Haven’t measured the depth but the pilot bearing is sitting where it should be based on the recess in the crank.

The flywheel has no impact on the position of the pilot bearing in relation to the gearbox.

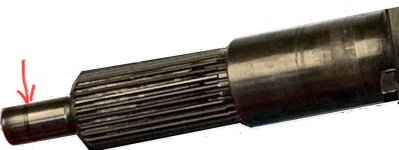

The line arrowed is from the o-ring in the needle roller. So the only bit of the end of the input sitting in the bearing is forward of that. 137C4E9F-9988-4CCF-A8A6-115EEFB48675.jpeg

Oneball

Oneball

CCCUK Member
The play I’m talking about isn’t longitudinal (in/out) it’s radial, imagine what would happen if the bearing wasn’t there. Tolerance for radial centring of the box to flywheel is 5 thou so movement at the pilot bush wouldn’t need to be great to have a similar effect is my thinking.

teamzr1

teamzr1

Supporting vendor
There was 2 different thickness of pilot bearing depending on 5.7 or 7.4L engines as seen they have different thickness
As to flywheel thickness, if thicker than stock and/or pressure plate not allowing tranny end shaft to fully seat to depth of pilot bearing
causing any play ?

Better answered when seeing the depth of end shaft meets thickness of pilot bearing depth


Oneball

Oneball

CCCUK Member

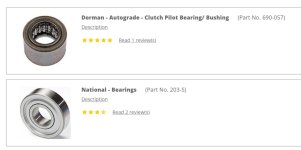

It’s the top sort. They’re 3/4” deep.

if flywheel or clutch was an issue the gearbox wouldn’t bolt up to the bellhousing.
